Emergency Lighting Inverter pack 2600mAh – LED Load 5-60W (with self-test)

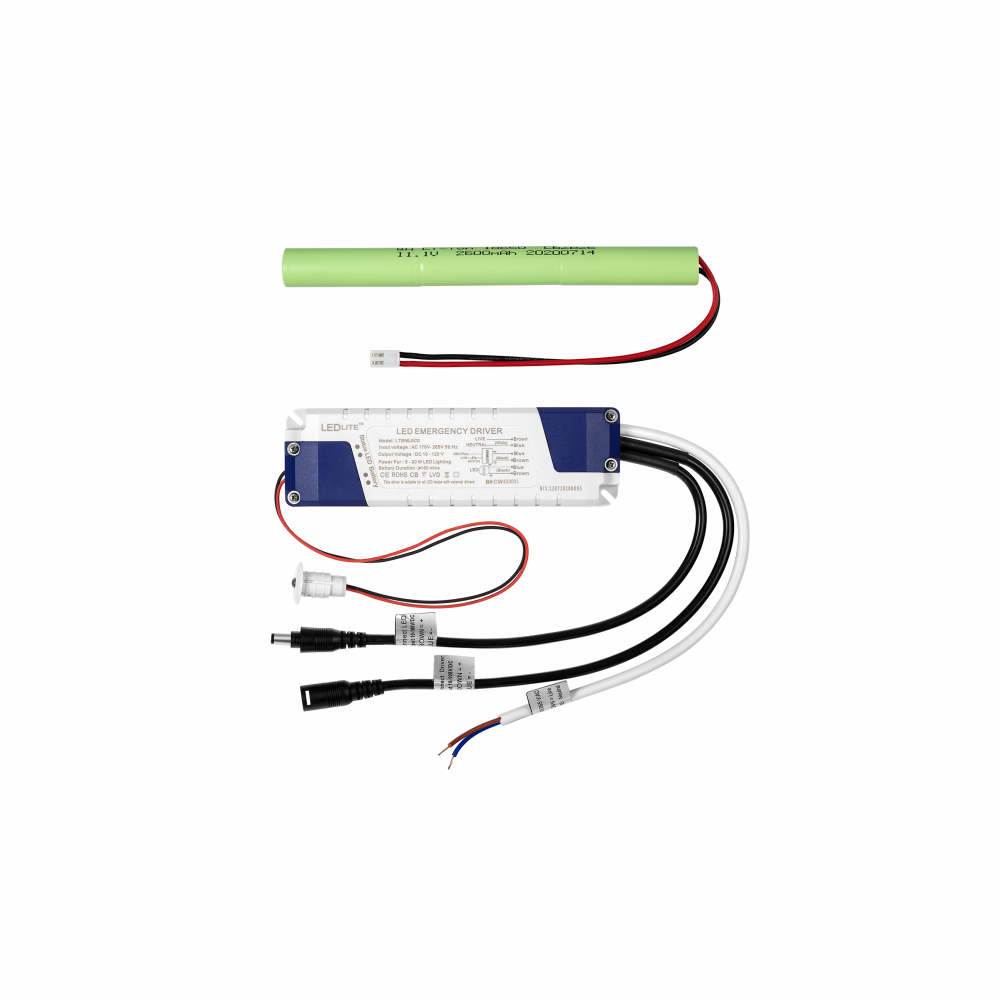

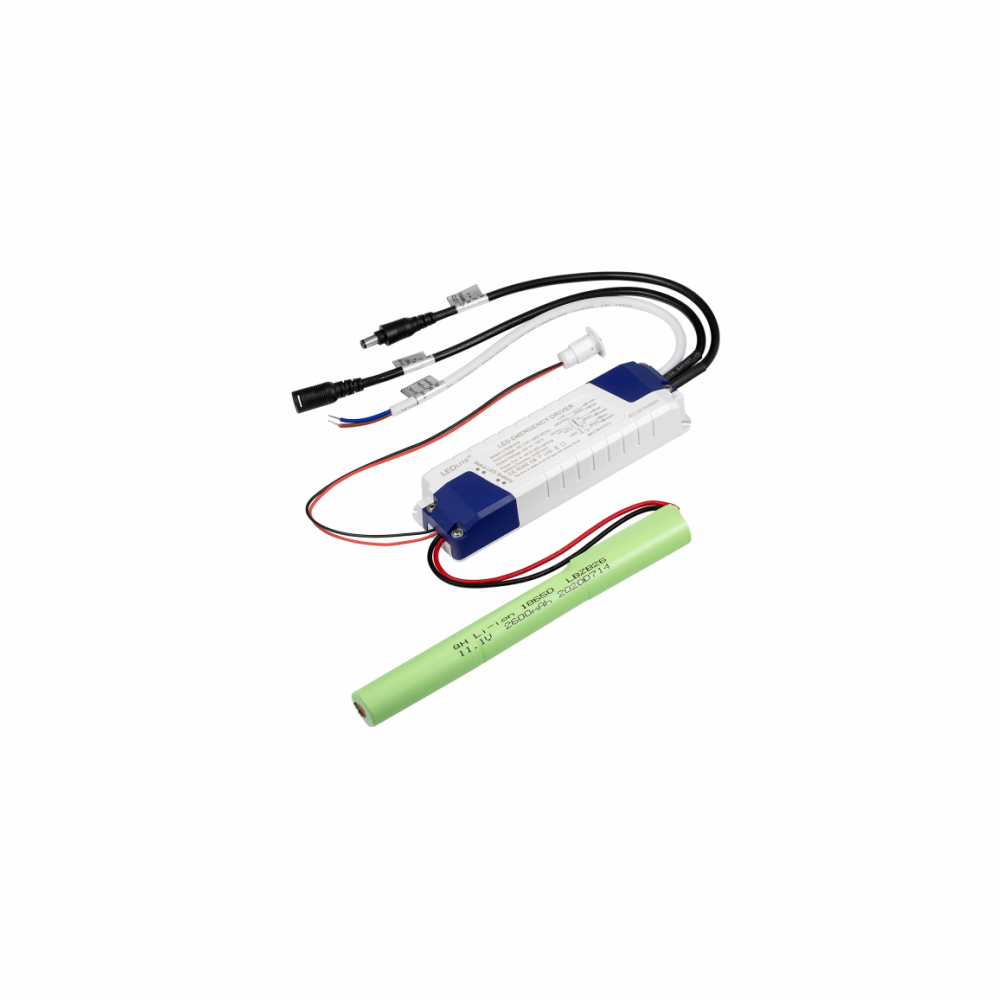

The FEMLED2 emergency pack includes housing, PCB, test switch, Indicator light and Li-ion battery.
The battery is a 2600mAh
Li-ion battery with long lifespan; the PCB uses IC control design in charging/discharging and power supply.
The PCB circuit has complete protection design for over-charging/discharging, output short-circuit, open circuit or input/output reverse connection.
Operating principle:
The FEMLED2 emergency pack is being charged when AC power is present.
When fully charged, the circuit will protect the battery from
over-charging and the emergency pack will enter stand-by mode.
As soon as the AC power fails the battery will supply power to the LED lights.
The FEMLED2 emergency pack is suitable for all 5-20W LED lamps and fittings with Integrated Circuit driver.
(This device CANNOT be used for the LED lights with Resistive driver).
It is used to ensure LED lights work normally in case of power failure
Emergency Time: 180 minutes.
Rated: IP30.
2 Year Warranty.
Emergency Lighting Inverter pack 2600mAh – LED Load 5-60W (with self-test)
The FEMLED2 emergency pack includes housing, PCB, test switch, Indicator light and Li-ion battery.
The battery is a 2600mAh
Li-ion battery with long lifespan; the PCB uses IC control design in charging/discharging and power supply.
The PCB circuit has complete protection design for over-charging/discharging, output short-circuit, open circuit or input/output reverse connection.
Operating principle:
The FEMLED2 emergency pack is being charged when AC power is present.
When fully charged, the circuit will protect the battery from
over-charging and the emergency pack will enter stand-by mode.
As soon as the AC power fails the battery will supply power to the LED lights.
The FEMLED2 emergency pack is suitable for all 5-20W LED lamps and fittings with Integrated Circuit driver.
(This device CANNOT be used for the LED lights with Resistive driver).
It is used to ensure LED lights work normally in case of power failure
Emergency Time: 180 minutes.
Rated: IP30.
2 Year Warranty.
- 20W LED emergency driver.
- IP30 protection level.
- Applicable to LED lamps.
- Voltage protection: wide voltage input AC85V-265V.
- Overload protection: timely protection when power exceeds 50% of rated power.
- Short circuit protection and no loading protection.
- High efficiency and low temperature extend lifespan ( > 50000 Hours).
- Safe Voltage Output.
- External green LED indicator
- Compact size, convenient in installation and maintenance.
- Battery features: High capacity Lithium-Ion battery with overcharge and over discharge protection. High temperature resistant battery.
- 11.1V Lithium-ion 3 cell battery pack 2600mAh. Simple plug-in connection.
- Inverter: Length: 105mm, Height: 45mm, Depth: 23mm.
- Working Volt: AC85-265V.
- Emergency Output: Voltage/Current - DC 230V 0.12A~0.01A.
- Battery Type: 18650 Li-Ion 11.1V 2600mAh. 20mm x 20mm x 220mm.
