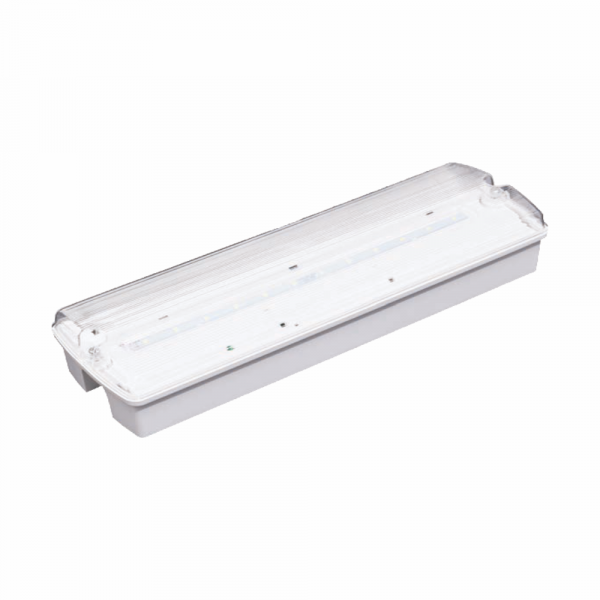

3W Slim LED Emergency Bulkhead
SKU: LKBH3-1A
Categories: Emergency Fittings, Indoor Lighting
Tags: Emergency Fittings, Maintained, Slim Bulkhead
The LKEB3-1AT is a LED-maintained emergency exit bulkhead, low energy, a slim alternative to conventional exit bulkheads. It has 3 hours maintained mode as standard and can also be configured for non-maintained operation. Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
3W Slim LED Emergency Bulkhead
The LKBH3-1A is a LED-maintained emergency exit bulkhead, low energy, a slim alternative to conventional exit bulkheads. It has 3 hours maintained mode as standard and can also be configured for non-maintained operation. Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
Specifications:
- Wattage: 3W
- Lumens: 170lm(mains) / 120lm(battery)
- LED Colour: Temp 6000K
- Beam Angle: 120º
- Voltage: 220-240V AC 50Hz
- Operating Temp: -20°C to +40°C
- IP Rating: IP65
- IK Rating: IK10
- Battery run time: >3 hours runtime on mains failure
- Battery Spec: NiC 3.6V 800mAh
- Construction: White Polycarbonate
- H x W x D: 110x350x70mm
- Warranty: 5 years
- Protection Class: Class II
